git and GitHub Workflow#

The best method for contributing software to the repository is a workflow that involves forking the repository, developing changes on “feature” branches, and opening pull requests through GitHub.

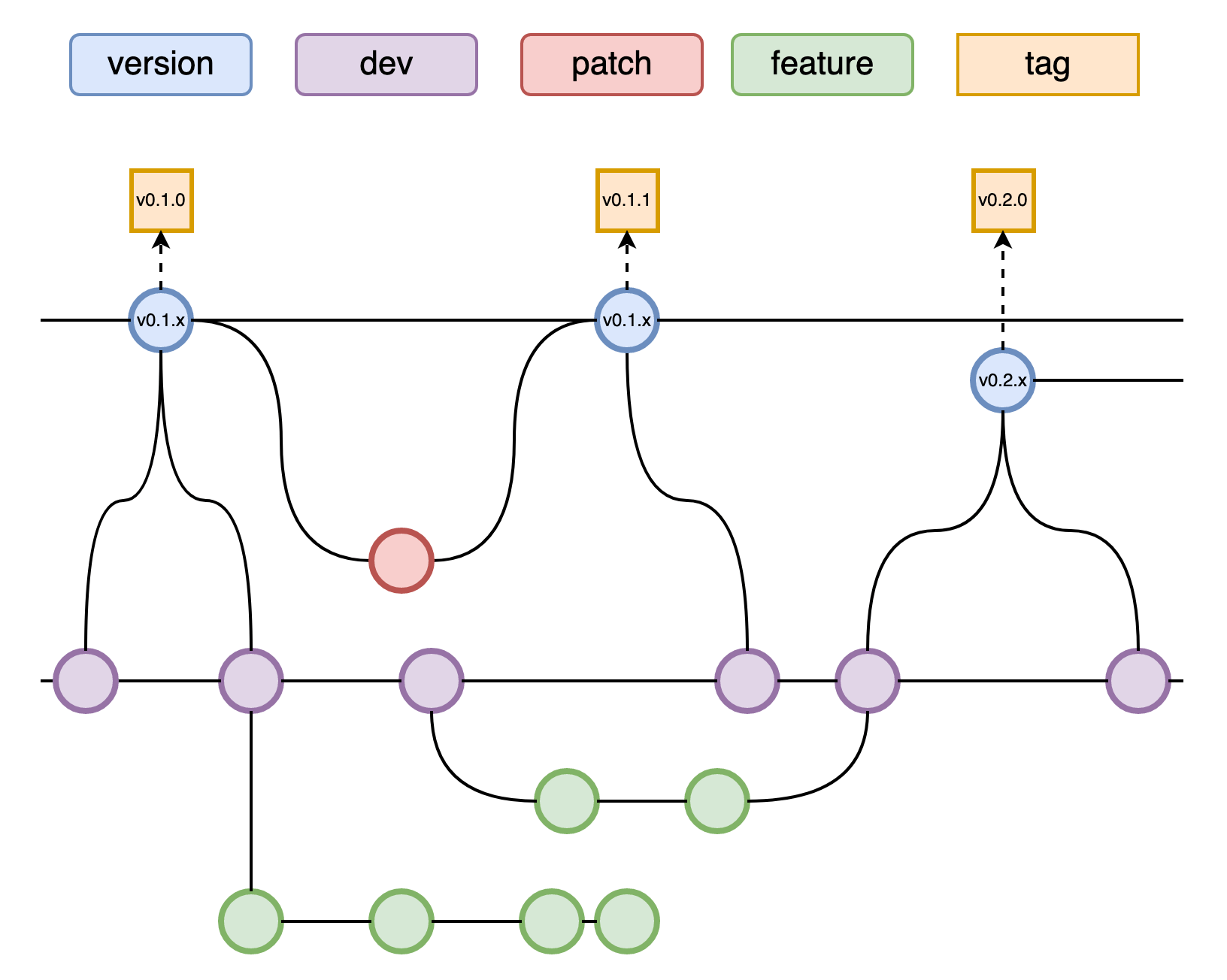

The following diagram depicts this workflow:

git and GitHub Workflow

As such, all feature branches should be branched off of and merged back into the dev branch.

Contributing new features#

Before contributing, it is generally encouraged to open a GitHub issue (imap_processing, or sds-data-manager), if one does not already exist, that describes the feature to be implemented, or the problem that is trying to be solved. This allows the contributor and the team as a whole to keep track of how the feature relates to the project and track its progress. Any contributors to the feature should be assigned to the issue, and proper label(s) should also be assigned.

Note: We use the ‘imap_processing’ repository as an example here, but this can be applied to ‘sds-data-manager’ as well.

Note: Steps (1) through (5) only to be completed once.

  1. Create a personal fork of the imap_processing repository by visiting the main IMAP-Science-Operations-Center imap_processing repository and clicking the Fork button near the top-right of the page. Follow the various steps to create a fork under your GitHub account.

    Note: Hold the naming convention username/imap_processing. The branch title will follow the specific project.

  2. Make a local copy of your personal fork by cloning the repository, using the URL found by clicking the green “clone” button:

    git clone https://github.com/<username>/imap_processing.git  # for HTTPS
git clone git@github.com:<username>/imap_processing.git  # for SSH

    This must be done even if you have previously cloned the repository. You must clone your personal fork.

  3. Ensure that the personal fork is pointing to the upstream imap_processing repository:

    git remote add upstream https://github.com/IMAP-Science-Operations-Center/imap_processing.git  # for HTTPS
git remote add upstream git@github.com:IMAP-Science-Operations-Center/imap_processing.git  # for SSH

  4. Install the pre-commit library to enable pre-commit hooks. These hooks will automatically run the ruff formatter and linter on your code changes before commits:

    pip3 install pre-commit

    If this results in errors, check the correct form of pip is being employed using which pip or which pip3.

    Then, while in the top directory of the repository, run:

    pre-commit install

    Note: This is optional, but helpful. This goes through pre-commit hooks locally for convenience which will also run when a pull request is made on GitHub.

  5. Create a feature branch off of the dev branch to develop changes on. Branch names should be short but descriptive (e.g. update-codice-unit-tests) and not too generic (e.g. bug-fix, updates). Consistent use of hyphens is encouraged.

    In the terminal, set your working directory to the file path of the fork you created in step one. Then, run the following command:

    git checkout -b <branchname>

  6. Make changes to the branch using the nominal git add/git commit cycle.

    Note: You can open the forked repository in a chosen IDE to make changes.

    git add <new or changed files you want to commit>
git commit -m 'Explanation of the changes'

    With the pre-commit hooks installed, you may need to make fixes to any warnings/errors reported by ruff and try committing your changes again.

  7. Push the feature branch to your personal fork’s GitHub repository:

    git push origin <branchname>

  8. On the IMAP-Science-Operations-Center imap_processing repository create a new pull request. Click on the “compare across forks” link to enable the pull request to use your fork. Set the “base repository” to IMAP-Science-Operations-Center and “base” to dev. Set the “head repository” to the imap_processing repository under your personal fork and “compare” to your feature branch. If the feature branch is still under development, you can click the “Convert to draft” button under the “Reviewers” section, or add a “[WIP]” at the beginning of the pull request title to signify that the pull request is not ready to be merged.

  9. Assign at least one reviewer to the pull request, though two or more reviewers are highly encouraged, especially for

    significant changes. They will review your pull request and either accept the request or ask for additional changes. If additional changes are needed, iterate through steps (7) and (8) until you and the reviewer(s) are satisfied.

  10. Once the pull request has been accepted, you can merge the pull request and delete the feature branch.

Keeping your fork updated#

You can keep your personal fork up-to-date with the IMAP-Science-Operations-Center imap_processing repository by either fetching and rebasing with the upstream remote, or fetching and pulling with the upstream remote:

git checkout dev
git fetch upstream
git rebase -i upstream/dev

or

git fetch upstream dev
git pull upstream/dev

Collaborating on someone else’s fork#

To contribute to a branch on another person’s personal fork, add a new remote that points to their fork, and use the nominal workflow for contributing:

git remote add <username> <remote url>
git fetch <username>
git checkout -b <branchname> <username>/<branchname>
# Make some changes via add/commit cycle
git push <username> <branchname>

Repository Naming Conventions#

The repository shall adhere to specific naming conventions to allow for more consistency:

  • Repositories shall have branches named main and dev, instead of master and development

  • Repositories shall be named with underscores instead of hyphens (e.g. imap_processing instead of imap-processing)
